Protocol groups
Protocol group management
This option is used when you need to create a new group (e.g., from custom protocols) or modify the composition of protocols within a standard group. The names of standard groups can also be edited.
All changes will be reflected throughout the interface, including in QoE reports.
Protocol groups have the following identifiers:
- 1 to 32 are used for standard (cloud) groups
- 1000 and above — used for custom groups
Setup
Step 1 – Creating a Group

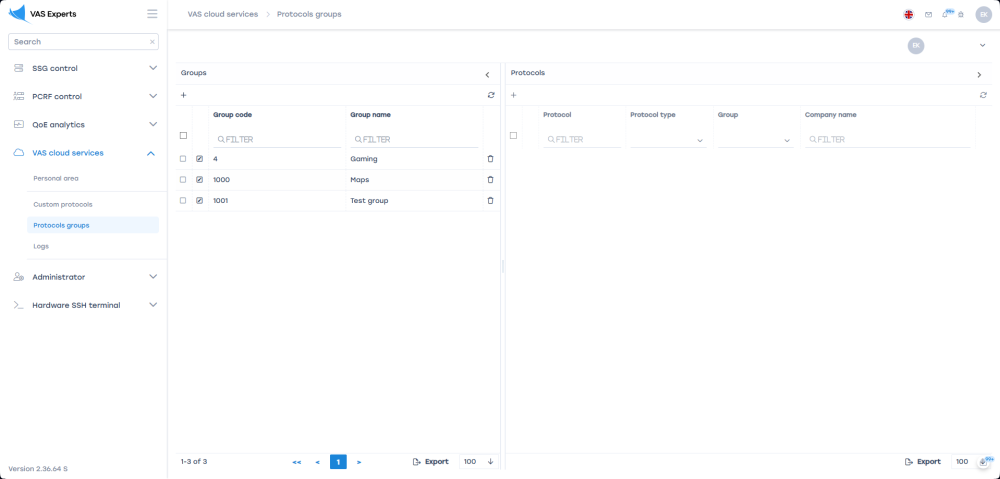

Go to VAS cloud services → Protocols groups and click the “+” button in the “Groups” column.

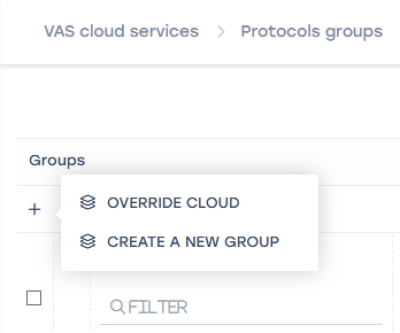

You can either override a standard group or create a new one.

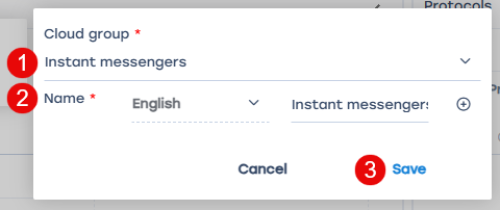

- For Cloud Groups:
- Select the desired group
- If needed, edit the group name
- Click “Save”

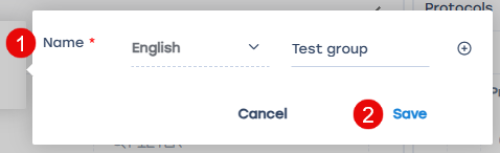

- For a Custom Group:
- Enter the group name
- Click “Save”
Step 2 – Adding Protocols

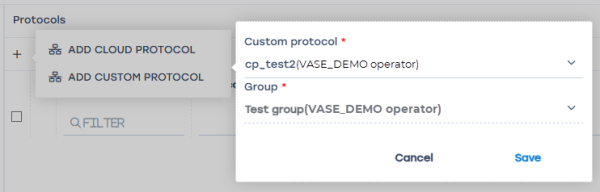

Select the created group and click the “+” button in the “Protocols” column.
You can add both custom and built-in (cloud) protocols.
After selecting the protocol, click “Save”. The protocol will be added to the group.
The created group will be available across all sections of the interface.
